Timing Belts Explained: Mechanics, Profiles (HTD vs. Trapezoidal)

Timing belts solve the slippage problems inherent in flat, O-ring, and V-belts by utilizing a flexible tooth molded to a belt with internal tension members. These teeth are flexible, allowing the load to be distributed across all teeth in contact with the pulley, ensuring precise power transmission.

Advertisement

Timing belts belong to a larger category of power transmission devices known as synchronous drives. Unlike friction-based drives, these belt or cable-based systems have the distinct advantage of zero slip.

This "positive drive" capability means these belts perform reliably even in wet or oily conditions, provided the pulleys are made of corrosion-resistant materials like stainless steel or plastic.

Timing Belt Diagram
Figure 1: Timing belts maintain an exact speed ratio, crucial for engines and automation.

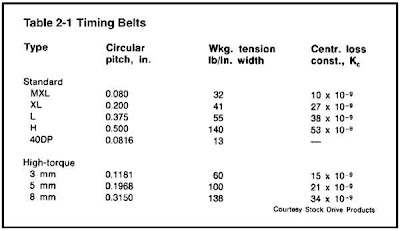

Tooth Profiles: The Evolution of Design

Timing belts are categorized by their tooth profile and manufacturing method. The geometric shape of the tooth dictates the belt's torque capacity, noise level, and wear life.

1. The Standard Trapezoidal Tooth

The most common timing belt historically features a trapezoidal-shaped tooth. While this was the industry standard for many years, it suffers from inherent mechanical drawbacks.

As each tooth engages the pulley, it is subjected to a cantilever force. This force deflects and deforms the belt’s tooth, causing only the base of the tooth to remain in solid contact. This deformation leads to:

  • Energy Loss: Bending hysteresis wastes power.
  • Skipping (Ratchet Effect): Under high load, teeth can climb up the pulley groove and skip.
  • Noise & Wear: High friction and impact noise reduce drive life.
Trapezoidal Tooth Timing Belt
Figure 2: The Trapezoidal profile is cost-effective but prone to tooth deflection.
Advertisement

2. HTD (High Torque Drive) and Curved Profiles

To overcome the limitations of the trapezoidal shape, engineers developed the curved tooth profile, commonly known by the trade name HTD (High Torque Design).

The rounded profile distributes stress more evenly across the entire tooth, rather than concentrating it at the base. This allows HTD belts to operate at:

  • Very low RPMs with high efficiency.
  • High torque loads.
  • Power levels up to 250 horsepower.

While slightly more expensive than roller chains or cable drives, HTD belts offer a maintenance-free, lubrication-free solution for heavy-duty power transfer.

HTD Timing Belt Tooth Profile
Figure 3: The HTD (Curved) profile improves stress distribution for higher torque transmission.
