Column Design: Effective Length and Slenderness Ratio (Part 2)

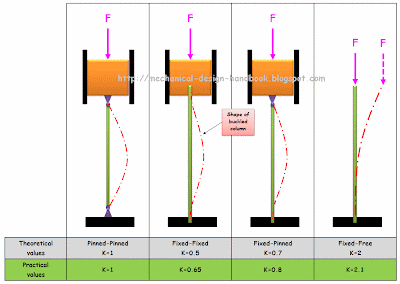

Figure 1: The "K" factor adjusts the actual length based on how rigid the supports are. Fixed ends (rigid) make the column effectively shorter and stronger.

The Critical Factors in Buckling

In Column Design (Part 1), we established that a column will buckle around its "weakest" axis—the one with the minimum radius of gyration (rmin).

However, the geometry of the cross-section is only half the story. The way the column is held at its ends (its boundary conditions) dramatically affects its strength. This introduces the concept of Effective Length.

Advertisement

1. Effective Length (Le)

The effective length is not always the actual length of the column. It is the length of an equivalent pinned-end column that would have the same buckling load. We calculate it using the formula:

Le = K × L

Where:

  • L: The actual unsupported length of the column.
  • K: The effective length factor (dependent on end fixity).

2. Understanding End Fixity (The K Factor)

The value of K changes based on how the column is constrained (see Figure 1).

Pinned-End (K=1.0)
The ends cannot move sideways but are free to rotate (like a hinge). This is the standard reference case.
Fixed-End (K=0.5)
The ends are rigidly held; they cannot move and cannot rotate. This makes the column much stiffer and resistant to buckling.
Free-End (K=2.0)
One end is fixed, the other is completely free (like a flagpole). This is the weakest configuration.

Theoretical vs. Practical Values

Why use higher Practical values?
In the real world, achieving a perfectly rigid "Fixed End" is nearly impossible. Supports have some flexibility, and bolts have tolerance. Therefore, engineering standards recommend using slightly higher K values (e.g., K=0.65 instead of 0.5 for fixed ends) to be conservative and safe.

3. The Slenderness Ratio

This is perhaps the most important dimensionless number in column design. It combines the geometry (Length) and the cross-section (Radius of Gyration) into a single ratio.

Slenderness Ratio = Le / rmin = (K × L) / rmin

This ratio tells us "how skinny" the column is.

  • High Slenderness Ratio: The column is long and skinny. It will fail by Elastic Buckling (Euler's method).
  • Low Slenderness Ratio: The column is short and thick. It will fail by Material Yielding (Johnson's method).
Advertisement

Next Step: Selecting the Calculation Method

Now that we can calculate the Slenderness Ratio, how do we know which formula to use? In the next post, we will compare the Euler Formula vs. the J.B. Johnson Formula.

Continue to Part 3:
Column Design: The Column Constant (Cc) and Selecting the Right Formula (Part 3)

References

  • Robert L. Mott, Machine Elements in Mechanical Design
