NX Motion Simulation Part 3: Slider Joints & Linear Drivers

In [Part 2 of this series], we finished setting the driver for the revolute joint of the indexing mill. Now, we will set up the Punch Die.

Advertisement

Step 1: Setting up the Slider Joint

The movement of the punch die is different from the indexing mill. It moves only in linear motion along the Z-axis. The joint for this kind of movement is called a "Slider" joint.

Procedure:
1. Select Joint command.
2. Select "Slider" joint icon.
3. Select the "Die" link we created earlier.

4. Click "Orientation on the first link" → Select "Point".
5. Select the center point of the cylinder to define the joint origin.

6. Select "Vector" → Click the bottom face of the cylinder (defines the downward Z-axis).
7. Rename to "J_Die".
8. Click Ok.

Step 2: Defining the Linear Driver

Advertisement

1. Right-click joint "J_Die" → Edit.
2. Set Motion Driver to "Constant".
3. Enter Velocity: 50 mm/s (Placeholder value).
4. Click Ok.

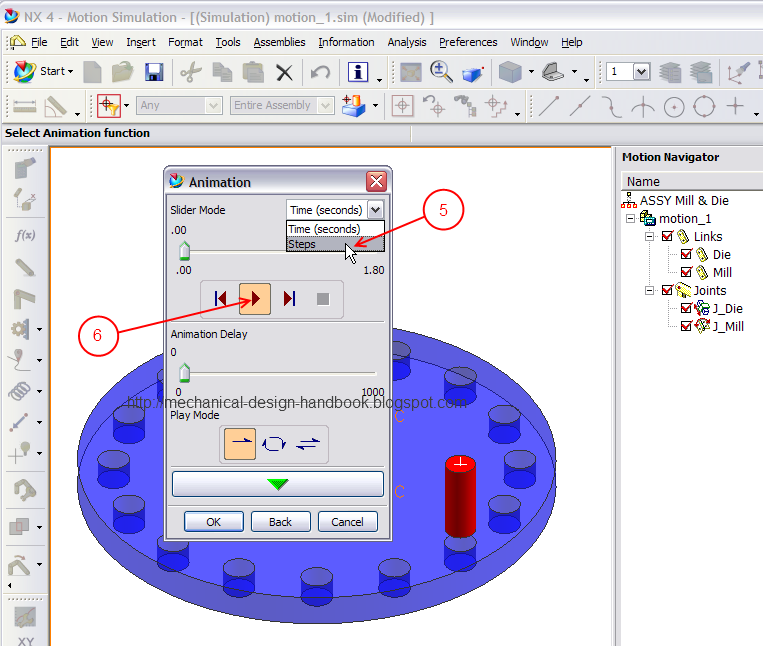

Step 3: Running the Animation (Digital Prototyping)

Now we run a preliminary test to ensure the joints are moving correctly.

Settings:
• Time: 1.8 seconds (Cycle time for 2,000 pcs/h).
• Steps: 360 (One step per degree).

Interference Detection: The Crash Test

As expected, because we are using simple "Constant" drivers, the parts collide! This confirms why we need Excel-Driven Motion Profiles to synchronize them perfectly.
